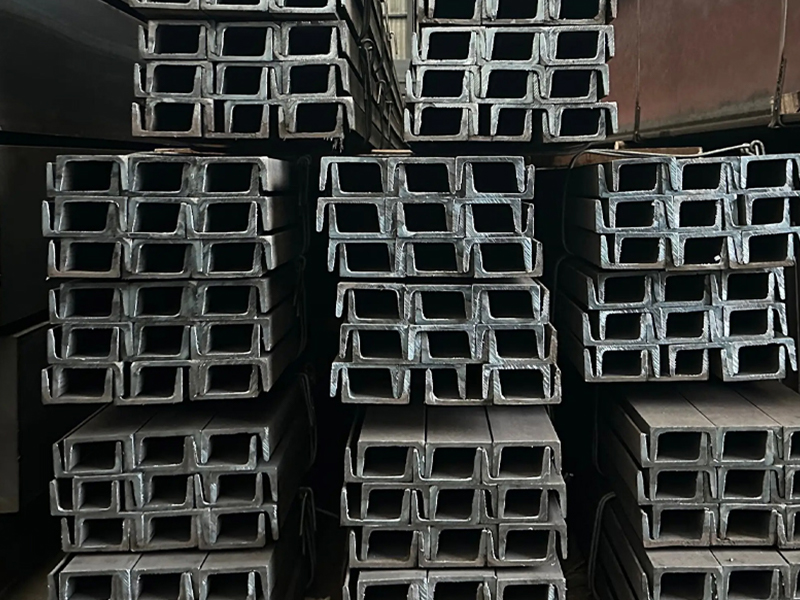

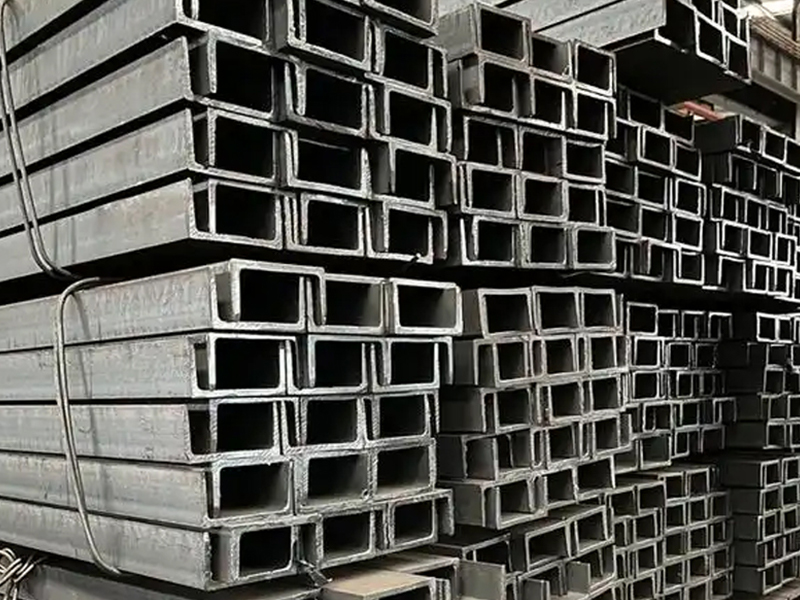

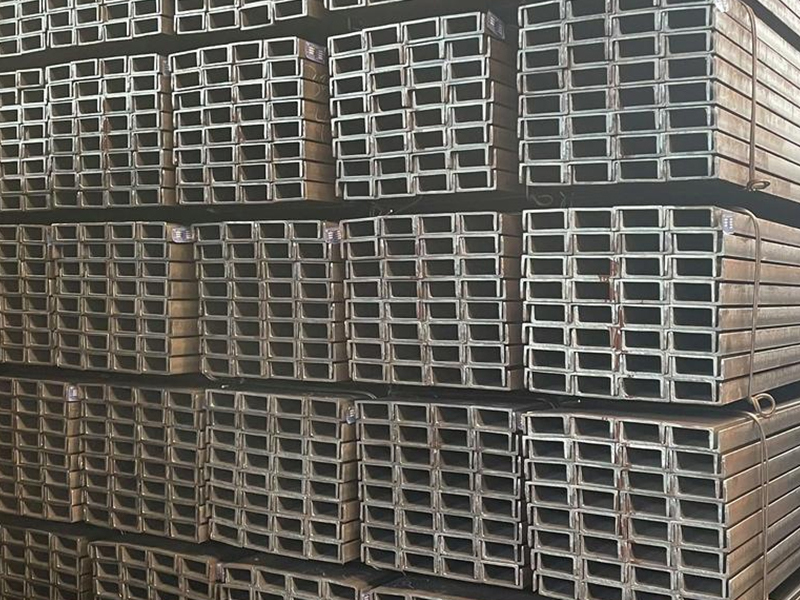

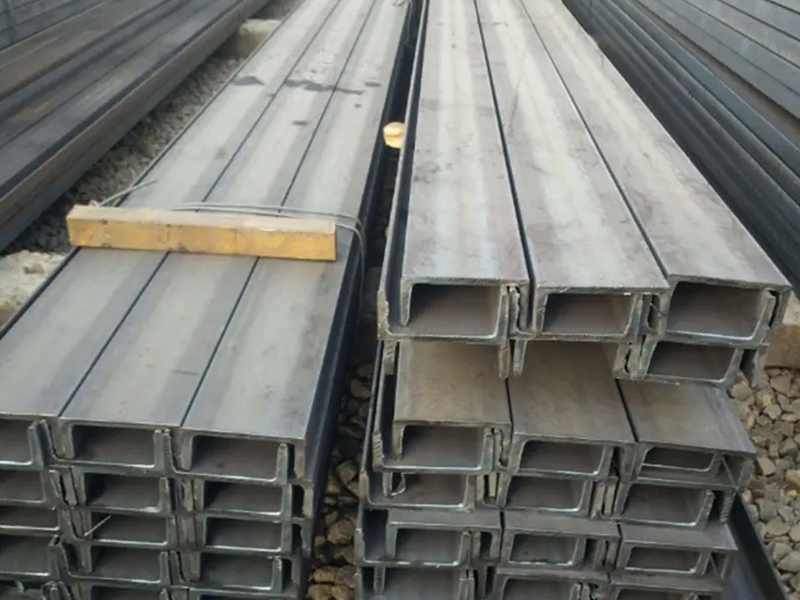

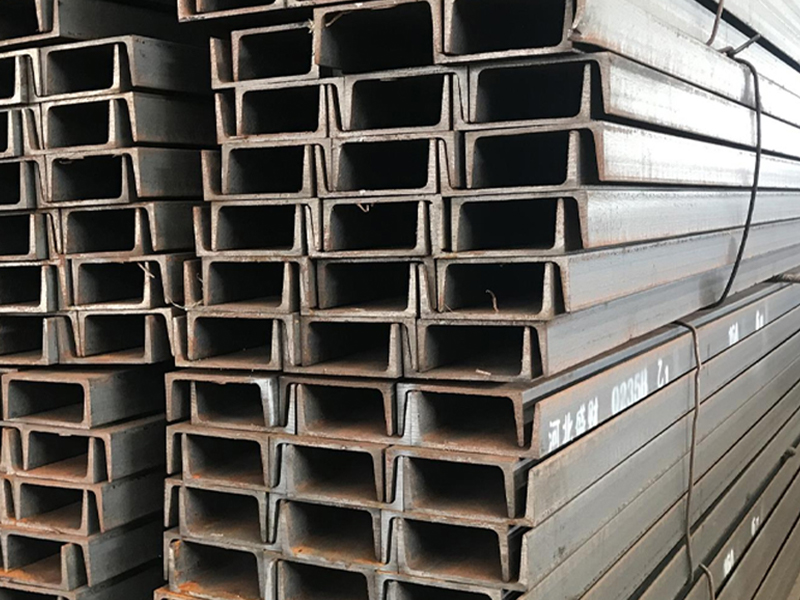

ASTM A36 Channel Steel 100x50mm

ASTM A36 Channel Steel 100x50mm is a widely recognized carbon steel profile, celebrated for its exceptional versatility, reliability, and cost-effectiveness in construction, fabrication, and industrial projects. Conforming to ASTM A36 standards—the industry benchmark for carbon structural steels—this channel steel features a 100x50mm cross-section, making it ideal for applications requiring strong, lightweight support with efficient load distribution.

2010 ESTABLISHED

410 EMPLOYEE

363+CLIENTS

13000+ trade

Why Choose Baosteel®

Product details

Q345 Angle Steel 75x75mm is a premium low-alloy high-strength structural profile, engineered to deliver exceptional performance in demanding construction, industrial, and infrastructure applications. With its robust 75x75mm equal-leg design and advanced alloy composition, this angle steel combines superior load-bearing capacity with impressive workability, making it a top choice for projects requiring reliable strength and durability.

Material	ASTM A36 (Carbon Structural Steel)	—	Chemical Composition: C ≤0.25%, Mn 0.80–1.20%, P ≤0.04%, S ≤0.05%, Si ≤0.40%
Section Size	100×50	mm	Channel section with web height of 100mm and flange width of 50mm
Thickness Options	3/4/5/6/8	mm	Commonly available thicknesses
Weight per Meter	4.779 (for 3mm), 6.337 (for 4mm), 7.887 (for 5mm), 9.437 (for 6mm), 12.535 (for 8mm)	kg/m	Varies depending on the thickness
Length Range	6000 – 12000 (Customizable)	mm	Usually available in standard lengths within this range and can be cut to specific lengths as needed
Cross-Sectional Area	6.08 (for 3mm), 8.06 (for 4mm), 10.03 (for 5mm), 12.01 (for 6mm), 16.00 (for 8mm)	cm²	Different values based on the selected thickness
Yield Strength (Minimum)	250	MPa	Measured at room temperature
Tensile Strength	400 – 550	MPa	Range at room temperature
Elongation (δ5 Minimum)	≥20	%	At room temperature
Impact Toughness (Average)	Varies depending on test conditions	J	Generally meets the requirements for typical structural applications under normal conditions
Manufacturing Standard	ASTM A36	—	Complies with the American Society for Testing and Materials standard for carbon structural steel
Surface Treatment Options	Mill finish (black), Galvanizing, Painting	—	Mill finish is the natural state; galvanizing for enhanced corrosion resistance; painting for aesthetic and additional protection purposes
Typical Applications	Structural frameworks in buildings, roof trusses, floor joists, support brackets in industrial equipment, shelving units, conveyor systems, edge reinforcements in platforms	—	Widely used in various construction and industrial applications where structural support and load distribution are required
